Right angle 7 pin pogo magnetic connector male and female spring pin connector.
UPE is a professional manufacturer of customized magnetic connector, our design always meet different needs of customers, the magnetic connector is widely used for Medical equipment, wireless equipment,Smart device and smart home,data communications
Key Specifications:
Continuous Working Current: 5A
Voltage Rating: 12V
Pitch: 2.2mm (compact spacing for dense PCB layouts).
Pin Number: 7-pin (male + female pair).
Right-Angle Design: Saves space in tight enclosures.
Pogo Pin Contacts: Spring-loaded for reliable, low-resistance connections.
Gender: Male and female versions available (mating pair).
Magnetic attraction force between the male and female docking interfaces of 7pin right angle magneti connector is >450 grams (g),, which is critical for stable connections in high-vibration or portable applications. The male female magnetic connector is use N52-grade neodymium magnets, N52 is the highest grade of commercially available neodymium magnets,it is high-performance permanent.
7pin magnetic connectors parameter:
| Name | 7Pin Magnetic connectors |
| Pin | 7pin or customized |
| Pitch | 2.20mm |
| Type | Right angle |
| Pogo pin | Brass |
| Housing | Black HTN+30%GF UL94 V-0 |
| Magnet | Neodymium iron boron |
| Magnet grade | N52(As requirement) |
| Magetic force | 450G |
| Spring force | 80g±20g,at 1.0mm working storke. |
| Mechanical life | 5000 cycle Min.. |
| Current | 5A |
| Voltage | DC 12V |
| Contact resistance | 50mΩ Max (PIN). |
| High voltage test | AC1000 V0.5mA 3SEC / DC 1000V 0.5mA 3 SEC. |
| Salt spray test | 48H |
| Certification | ROHS or REACH compliant product |
| Test | 100% open and short test |

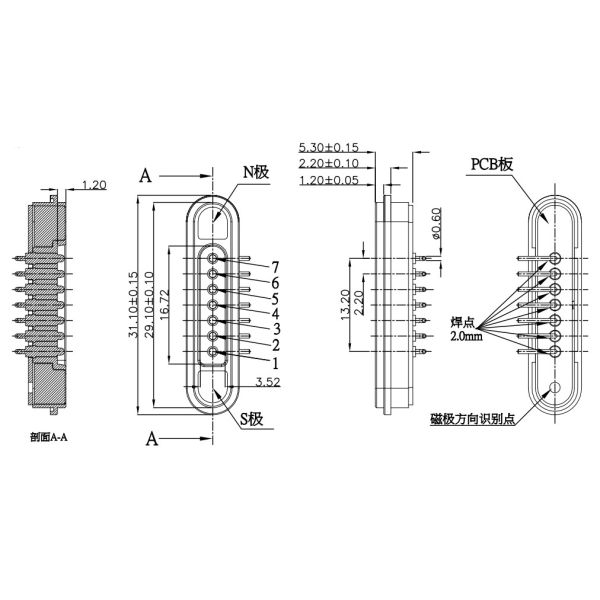

7pin male right angle magnetic connectors:
7pin female right angle magnetic connectors:
Recommended pcb layout:
Layout tolerance:±0.05mm
Advantages of Magnetic Connector
.Humanize design of automatic adsorption connection experience.
.Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device.
.Life time: up to 100,000-200,000 cycle.
.Waterproof design: the female end of the device can be dustproof and waterproof (IPX8).
.Fast charging time: 5A-10A magnet connector design withstands large current transmission.
.The appearance of the magnetic connector can be matched according to the design of the customer's application device.
.Product anti-short circuit structure design and foolproof.
.Realize high frequency signal transmission, can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission.
Why do customers choose US?
1.Customization & Flexibility
2.Fast Samples = Faster Time-to-Market
3.Every connector undergoes rigorous quality checks
Incoming Material Inspection
In-Process Quality Checks
100% Final Testing
Traceability & Compliance
4.Customer-Focused QC Flexibility
5.Real-Time QC Collaboration
Magnetic connectors application:
We can provide design service
Payment method: T/T,PayPal,OCBC
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
Pakaging & shipping
